This video demonstrates the wiring and operation of a half-wave voltage multiplier and tripler, making it easy to understand and implement.

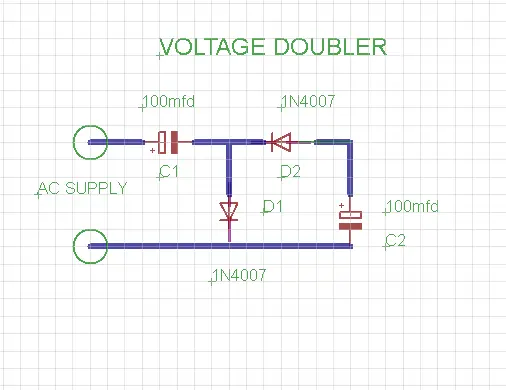

Voltage Doubler

Components Required

1. 2 x 1N4007 Diode
2. 2 x Capacitor 100µF
3. 1 x 230V-6V Transformer

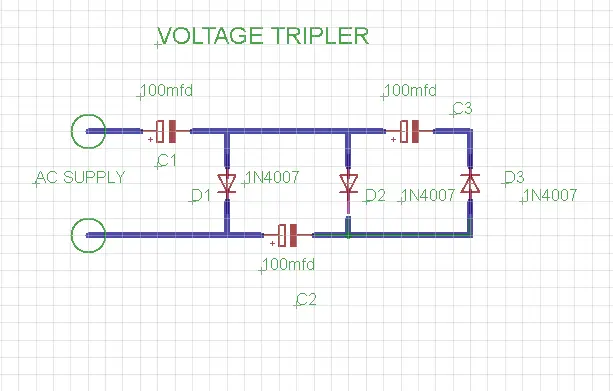

Voltage Tripler

Components Required

1. 3 x 1N4007 Diode
2. 3 x Capacitor 100µF
3. 1 x 230V->6V Transformer
