In this video, I'll show you how to control a servo motor using a 555 timer IC, without the need for an Arduino or any microcontroller.

Components Required

1. 1 x NE555 Timer IC
2. 1 x BC547 Transistor
3. Resistors:
• 1 x 10KΩ
• 1 x 68KΩ
• 1 x 1KΩ
• 1 x 4.7KΩ
• 1 x 33KΩ
4. 1 x Servo Motor
5. 1 x Breadboard
6. 1 x Push Button

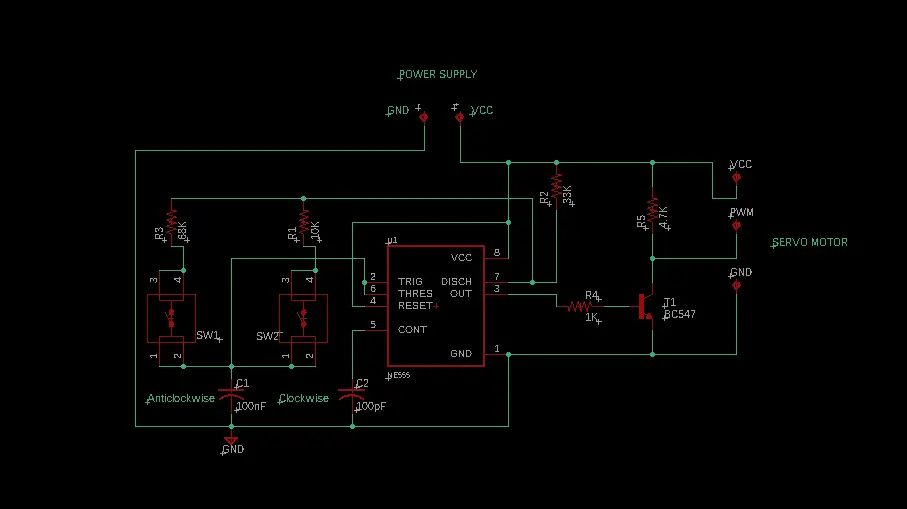

Circuit Diagram

PCB printing files: CLICK HERE
